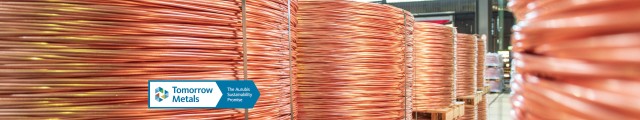

Continuous Cast Copper Wire Rod – Aurubis ROD and RheinROD
Aurubis ROD | RheinROD is a cast and rolled oxygen-bearing copper wire rod from Aurubis. With its extremely high electrical conductivity, Aurubis ROD ensures the highest possible efficiency in converting and transmitting electrical energy and signals. Other excellent features such as outstanding drawability, uniform recrystallization behavior and excellent surfaces make our wire rod ideally suited for use in demanding processing methods and applications. The basis of these characteristic features of Aurubis ROD | RheinROD is not only its high chemical purity – a result of using cathodes that clearly exceed the LME Grade A quality standard – but also the state-of-the-art production technology at our four ROD plants.
Basis for sophisticated applications
Almost every copper wire – and thus almost every cable or enameled wire – starts out as wire rod, making it the most common copper intermediate in the world. About 75 % of global copper cathode production is processed into continuous cast wire rod. Depending on their intended use, copper wires must meet varying requirements which must be considered when determining the quality of the wire rod. Aurubis supplies the right quality for each application, customer and intended use.
Aurubis ROD | RheinROD is the ideal starting product for further processing by drawing or rolling. The combination of outstanding conductivity and formability makes our ROD the perfect choice for copper wires in various types of cables for infrastructure and enameled copper wires in electrical engineering.
The excellent surface quality of our wire rod, mainly created by production at our four ROD plants, is a basic requirement for high temperature-resistant, error-free insulation systems. For this reason, our production and quality control specialists make surface quality a top priority.
Production capacity
>
per year
Electrical conductivity in % IACS
>
Aurubis ROD lines
Whether in electrical engineering, infrastructure, energy technology, automotive engineering or aviation, in nearly all applications, Aurubis ROD | RheinROD has gained an outstanding reputation in over five decades of production and refinement. Our wire rod is also used in many forward-looking sectors and technologies:
Electromobility
- Aurubis ROD | RheinROD used in traction motors and on-board power supplies
- Use in infrastructure for charging stations, in transformers and charging cables
- Optimization of winding systems in the automotive industry, in transformers and generators
- Ultra-thin insulating layers on flawless copper wire surfaces optimize power densities and reduce energy consumption in traction motors
Renewable Energy
- Efficient generation and distribution of CO2-free electrical energy with copper products by Aurubis
- Superior conductivity and pared-down insulation systems enable high energy densities in wind turbine generators
- Transportation to end-user markets through appropriate infrastructure (e.g. extra high voltage underground cables)
- Generation of green energy and significant support of the European Green Deal
In addition to oxygen-bearing copper rod Cu-ETP1, our product portfolio also includes low-alloyed copper rod (CuAg and CuSn) based on oxygen with an interesting combination of high strength and good conductivity. Applications can be found in on-board vehicle power supplies, overhead contact lines and electrical engineering.
Product portfolio
- Designation: Cu-ETP1
- Material number according to DIN EN: CW003A
- Material number according to UNS: C11040
- Oxygen content: 100 - 400 ppm
- Electrical conductivity: > 101 % IACS
- Copper content: 99.99 %
You can find additional information in the product brochure.
- Designation: CuAg0.1 based on Cu-ETP1
- Material number according to DIN EN: CW013A
- Material number according to UNS: C11600
- Silver content: up to 0.12 wt%
- Electrical conductivity: > 100 % IACS
- Copper content: remaining material
You can find additional information in the product brochure.
- Designation: CuSn0.3 based on Cu-ETP1
- Material number according to DIN EN: CW129C
- Tin content: up to 0.3 wt%
- Electrical conductivity: 100 % - 78 % IACS
- Copper content: remaining material
You can find additional information in the product brochure.
Rod diameter
| Cu-ETP1 | CuAg0,1 | CuSn0,3 | |
| 8 mm |
✓ |
✓ | ✓ |
| 10 mm | ✓ | ||
| 12,4 mm | ✓ | ||
| 13 mm | ✓ | ||
|
16 mm |
✓ | ||
| 20 mm | ✓ | ✓ | |
| 23,5 mm | ✓ | ✓ |
