Environmental protection at Pirdop
Aurubis Bulgaria is the largest copper producer in southeastern Europe and the second largest company in Bulgaria. Since the Pirdop site was officially opened in 1958, mainly copper anodes, copper cathodes, and sulfuric acid have been produced from primary raw materials.
In the last two decades, the plant has been converted into a highly modern, environmentally friendly operation. For example, following the plant’s privatization in 1997 and acquisition by Aurubis in 2008, over € 600 million has been invested so far in modernizing the processes and improving the environmental performance of the site.
Because improving environmental protection remains a very important objective, about 20 % (€ 35.5 million) of all investments at the site in the last five years have been allocated to environmental protection projects.
In the course of the extensive modernization, three significant, state-of-the-art environmental protection facilities have been built in the last several years.
In November 2014, a new rainwater treatment plant was commissioned. The facility treats rain and drainage water from the 4 km² plant premises in order to continue reducing emissions to water (link: see water emissions graphic).
A new additional treatment system for secondary hood off-gases has been in operation since March 2016. The new system utilizes a modern procedure known as Sulfacid technology, which is unique in Bulgaria and in the entire copper smelting industry.
In addition, a new converter slag cooling optimization project (using ladle/pot cooling instead of the pit cooling) was introduced and commissioned in the beginning of 2020. This project will continue in the coming years to also optimize the flash smelter furnace slag cooling process.
This new facility further reduces the sulfur dioxide emissions and fugitive emissions from the smelting processes.
Environmental Protection Pirdop - facts & figures

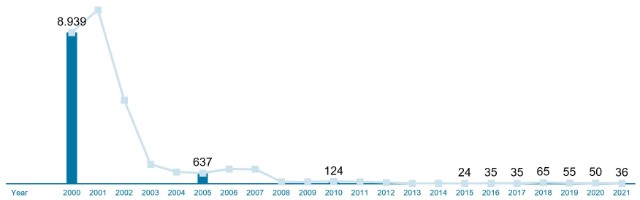

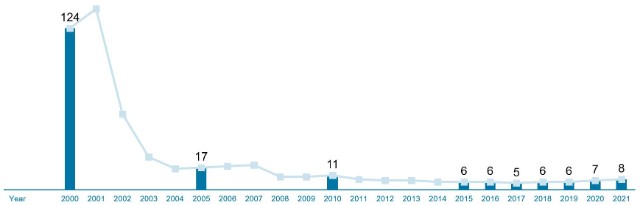

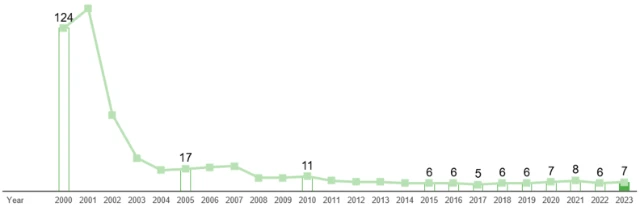

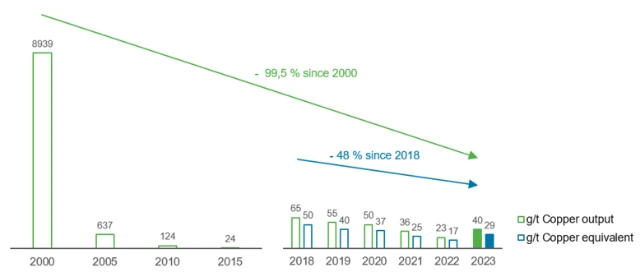

Key factors in the reduction of dust and SO2emissions include:
- a number of modernizations in both lines of the Sulfuric Acid Plant (2001-2014)
- the replacement of the heavy oil dryer with a steam dryer (2001-2002)
- the first (conventional) off-gas cleaning system for secondary hood off-gases (2007)
- the new additional (Sulfacid) off-gas cleaning system for secondary hood off-gases (2016).
- the new facility for cooling converter slag in pots (2020)

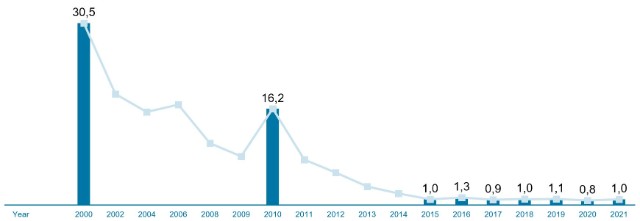

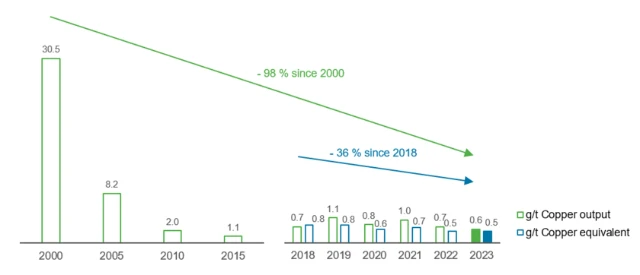

Key factors in the reduction of metal emissions to water include:
- the commissioning of the second and third stages of the treatment plant for industrial wastewater (2005-2006)
- the modernization of the wastewater system for acidic wastewater (2006-2008)
- the modernization of the wastewater systems for domestic sewage (2010-2011) and rainwater (2012-2013)
- the commissioning of the rainwater treatment plant (2014).
- the commissioning of a new sand bed filter unit in the industrial wastewater treatment plant (2020)

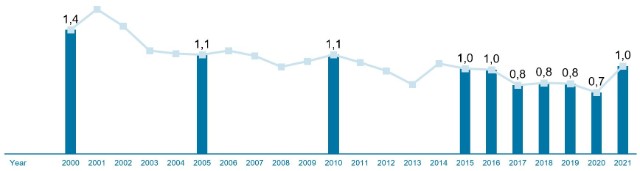

Key factors in the reduction of CO2 emissions include the following projects (examples):
- change of fuel burners in the anode furnaces to increase efficiency
- installation of a steam turbine to produce electricity from waste heat
- changes in process control to optimize electricity consumption
In the future, the planned gasification of the Pirdop plant and the installation of a solar power plant will contribute to further reduction of CO2 emissions.
Environmental Protection Measures & Projects
- Constructing a new facility for cooling converter slag in pots
- Building permit received in February 2018
- Commissioned in the beginning of 2020
- Extension of the project to also optimize the flash smelter furnace slag cooling process planned
Installing a new sand bed filter unit in the industrial wastewater treatment plant
Building permit by October 2018
Commissioned in 2020
- Investigation of optimization possibilities continues
- Implementation during the next large-scale facility overhaul (Q2 2019)
- Existing bag filters modified and additional filter boxes installed
- Building permit received
- Finalization of renaturation expected in the beginning of 2021
- On track
Degree of implementation:
- Signed agreement with CEZ ESCO Bulgaria for the construction of the photovoltaic power plant (10 MW) on a territory of historical remediated landfill
- Planned start of construction in spring 2021
Environmental Protection milestones at Pirdop site

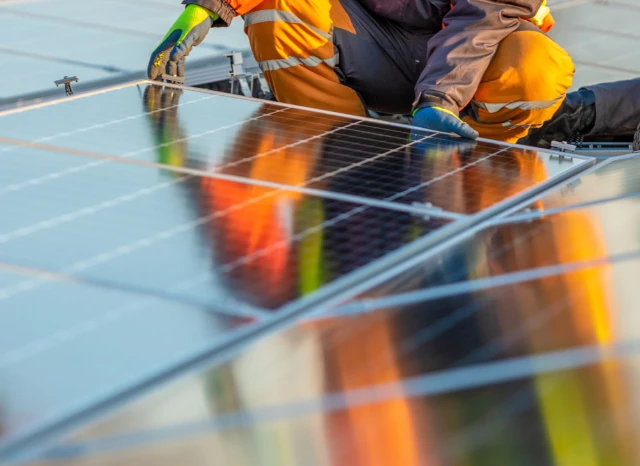

Solar farm: In July 2020, the contract was signed with CEZ ESCO Bulgaria EOOD, a company of the CEZ Group. Aurubis Bulgaria is planning to build a 10 MW photovoltaic plant on the plant premises – and thus become the first industrial consumer in Bulgaria to invest in its own production of green energy on this scale. Now the next steps follow until the planned start of construction in spring 2021.

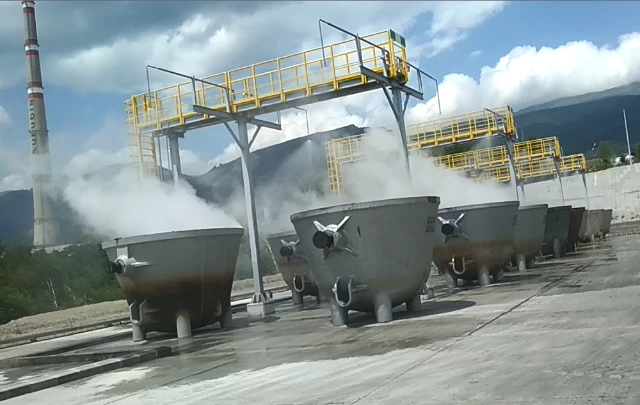

Converter slag cooling optimization: A new facility for cooling converter slag in pots was commissioned in early 2020. This project will be extended in the coming years in order to also optimize the flash smelter furnace slag cooling process.

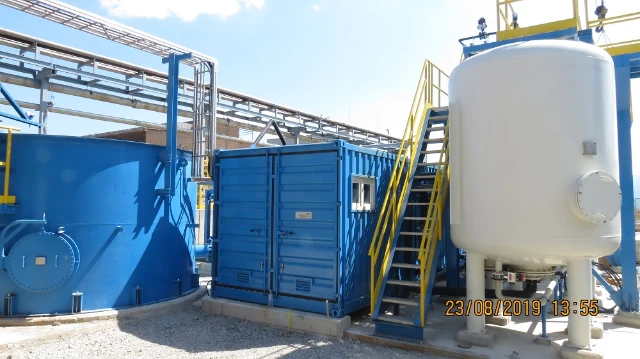

Industrial wastewater treatment plant modification: A new sand bed filter unit was installed in order to reduce the discharge of undissolved substances into bodies of water.

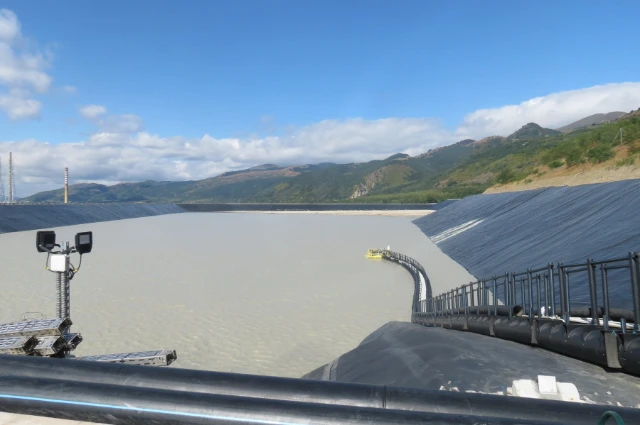

Expansion of fayalite landfill: The first stage of the fayalite landfill expansion was completed and commissioned in May 2018. The objective of the project is to build an extension to the existing fayalite landfill that will consist of two cells with a total capacity of ca. 19.8 million tons. The cells are surrounded by soil that is protected by an insulating layer and equipped with a drainage system. Each cell will be built in eight separate stages up to the height of the existing fayalite landfill.

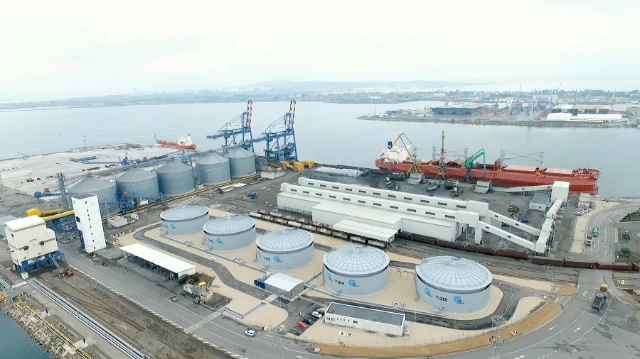

Special terminal for handling and storing sulfuric acid at the Port of Burgas: A new terminal for handling and storing sulfuric acid was officially inaugurated at the Port of Burgas on the Black Sea. The entire storage capacity is 50,000 tons of sulfuric acid. Both projects (the terminal for sulfuric acid and the warehouse for copper raw materials) were implemented in cooperation with the largest private port operator in Bulgaria – BMF Port Burgas. Beide Projekte (das Terminal für Schwefelsäure und das Lager für Kupferrohstoffe) wurden in Zusammenarbeit mit dem größten privaten Hafenbetreiber Bulgariens - BMF Port Burgas - realisiert.
Warehouse for copper raw materials in the Port of Burgas: A new warehouse for copper raw materials opened at BMF Port Burgas in May 2017. The warehouse has a storage capacity of 65,000 tons of copper concentrates and covers an area of 6,000 m2. The focus of this project is on improving environmental performance when it comes to protecting the air. The new facilities enable the transport and storage of copper concentrates in closed rooms. In the process, bulk material is handled without losses. The current equipment uses the best available techniques (BAT).
Seveso permit issued: In August 2017, Aurubis Bulgaria successfully received the Seveso permit pursuant to Directive 2012/18/EU (Seveso-III).
Closure of the third sludge landfill: Similar to the first and second sludge landfills, the third sludge landfill for sludge from wastewater and off-gas treatment was successfully closed according to plan and in conformity with all applicable environmental requirements (especially Directive 1999/31/EC). The closed landfill will now be monitored for at least the next 30 years to ensure that all restoration work was successful.

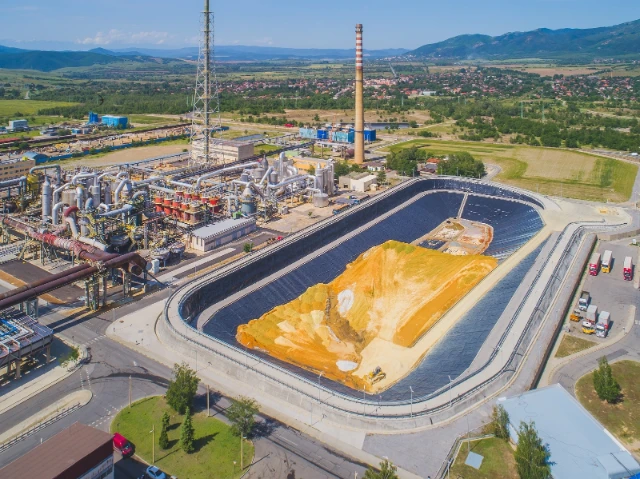

Construction of the fourth sludge landfill: The fourth special landfill for sludge from wastewater and off-gas treatment was constructed and commissioned in full conformity with all relevant environmental requirements (in particular Directive 1999/31/EC).

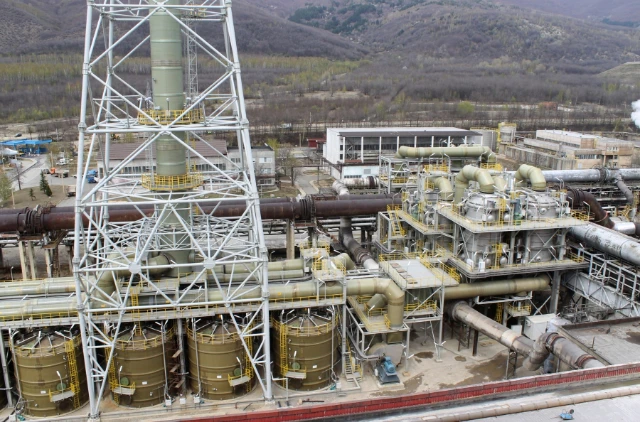

New additional treatment plant for secondary hood off-gases (Sulfacid): The new gas cleaning system (Sulfacid) was constructed and commissioned in full conformity with the best available techniques (BAT). The project makes a notable contribution to environmental protection. It uses a modern process, a technology called Sulfacid, that is unique for Bulgaria and for the entire copper smelting industry.
Opening of a rainwater treatment plant: Aurubis invested a total of € 6.3 million in the treatment plant for rainwater and drainage water. The building phase extended over a year and comprised the construction of the facility with a capacity of 250 m³/h and containment basins for accumulated wastewater. To decrease emissions to water sustainably, this plant cleans the rain and drainage water from the premises, which cover a surface of 4 km². The plant conforms to the best available techniques (BAT).
Use of waste materials and introduction of a new product in the portfolio: At the end of 2012, EU subsidies to Aurubis Bulgaria were approved for a project to recycle waste materials and to introduce a new product (fayalite/fine-grained iron silicate) to the portfolio. The project was financed by the EU Regional Development Fund as part of the program “Development of the Competitiveness of the Bulgarian Economy” (2007-2013) together with the Bulgarian government. The 50 % financial support is contractually guaranteed and is related to the regional development program category “Investments in Green Industries.” Among other things, the project includes the purchasing and commissioning of new equipment for copper scrap processing and a filter press for drying fayalite, which opens up additional possibilities for using this by-product.
Investment program “Aurubis Bulgaria 2014”: The project, which had a capital expenditure volume of € 44.2 million, included environmental protection measures amounting to € 26 million. The objective of the program was to improve the environmental balance of the smelting operations, in addition to process improvements. These improvements included the expansion of the filter capacity for the concentrate drying facility, the replacement of the concentrate burner, the expansion of the smelting furnace’s cooling equipment, and the modification and increase of the waste heat boiler’s heat exchange capacity. The construction of the new additional treatment plant for secondary hood off-gases was a considerable contribution the project made to environmental protection.
Reopening of the renovated Flotation Plant for slag: In addition to increasing the slag processing capacity, the copper recovery rate increased, which further improved the site’s resource efficiency. The best available techniques are used in the facility.
Opening of new Tankhouse: The new Tankhouse operates with fully automatic equipment and uses state-of-the-art technology pursuant to the ISA 2000 standard (Australia). The process is monitored and controlled by an automatic management system (DCS 7). The total costs for building the Tankhouse amounted to € 82 million, making it the largest industrial investment in Bulgaria at that time.
Construction of the third sludge landfill: The third landfill for sludge from wastewater and off-gas treatment was built and commissioned. The highest safety standards to protect the soil, surface water, and groundwater were fulfilled here as well (especially Directive 1999/31/EC).

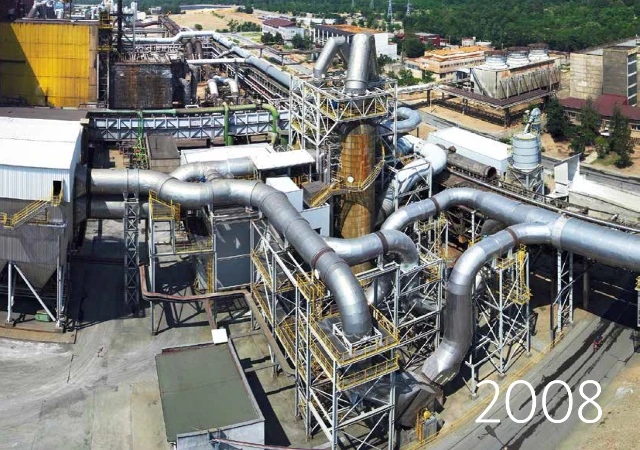

First conventional treatment system for secondary hood off-gases: In 2008, the first conventional treatment system for secondary hood off-gases was officially commissioned in full conformity with the best available techniques (BAT). The system notably reduces emissions of fine dust and sulfur dioxide. The total investment for the project amounted to € 14 million and was financed by Aurubis.

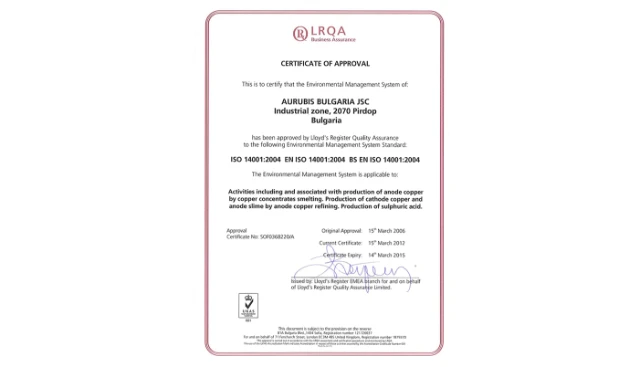

Certification of the environmental management system in accordance with ISO 14001: In March 2006, the environmental management system at the Pirdop site was successfully certified by an external auditor in accordance with the ISO 14001 standard for the first time.

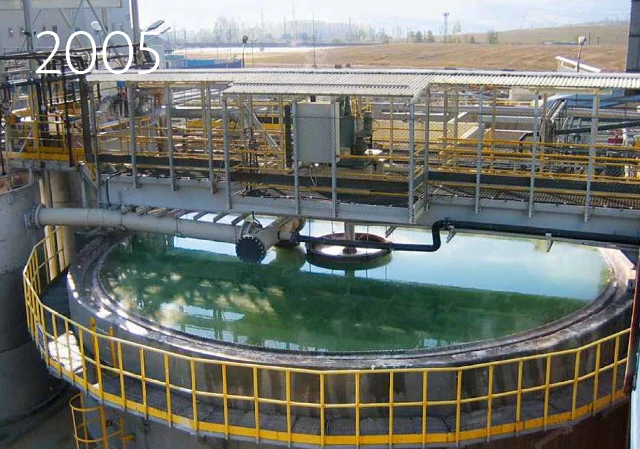

Opening of the second and third stages of the treatment plant for industrial wastewater: In 2005, the second and third stages of the treatment plant for industrial wastewater were commissioned. They use a modern technology that was developed to treat industrial wastewater in a three-stage process and that guarantees adherence to the limits for water emissions.
Upgrade of Sulfuric Acid Plant: The sulfur dioxide-rich gases that form during copper concentrate smelting in the flash smelter and at the converters are cleaned, dried, and converted into sulfuric acid in the Sulfuric Acid Plant. The facility consists of two identical units that produce concentrated sulfuric acid fully automatically. This is both used internally and sold for external use.
Implementation of the Directive concerning integrated pollution prevention and control (IPPC Directive): In June 2005, the plant’s environmental protection measures were recognized with a permit pursuant to the European IPPC Directive concerning integrated pollution prevention and control.
Construction of the second sludge landfill: The second landfill built especially for sludge from wastewater and off-gas treatment also fulfills all environmental requirements and the highest safety standards to protect the soil and groundwater (especially pursuant to Directive 1999/31/EC).
Belgian environmental protection prize: The successful completion of the environmental remediation program in Pirdop was distinguished with the 2003/2004 Belgian environmental protection prize in the category “International Cooperation for Sustainable Development.”
Construction of a fayalite landfill: A landfill was built to store fayalite, which accumulates in the flotation process. The landfill fulfills all environmental protection requirements. The first and second expansions of the landfill were completed in 2009 and 2015, respectively.

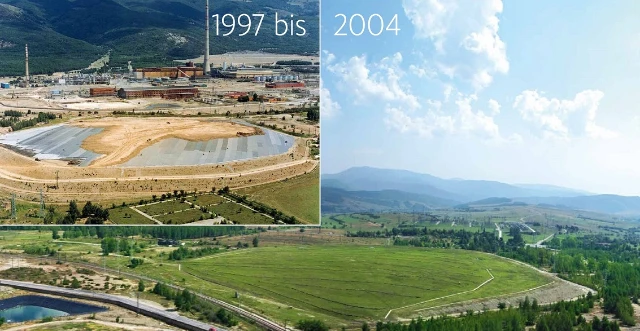

Environmental remediation program: The “Georgi Damyanov” smelter was operated as a state-owned company from 1958 to 1997. Due to inadequate investments in environmental protection by the Bulgarian government, there were considerable environmental impacts in the region during this time. The company was privatized in 1997 and managed by the Belgian Union Minière Group from that point. The privatization agreement included a remediation program amounting to US$ 25 million, among other things. Within the scope of this program, defunct facilities were torn down, building rubble was appropriately disposed of, and landfill areas (the sludge settling pond known as the “Blue Lagoon,” the fayalite landfill, the slag landfill) and contaminated soil were rehabilitated. In the course of the remediation program, the first stage of the treatment plant for industrial wastewater and the first landfill for sludge from wastewater and off-gas treatment were built and commissioned in 1999.
